8 Port 2.5G Managed Ethernet Switch with 10G SFP, 8 x 2.5G Base-T Ports, Support LACP/VLAN/QOS/DHCP Client, Metal Web Managed Fanless Network Switch

Overview

• Brand : GoodTop
• Number of Ports : 9
• Included Components : 2.5gb switch managed, Power supply
• Color : Black
• Compatible Devices : Desktop, Gaming Console, Laptop, Printer, Router

About this item

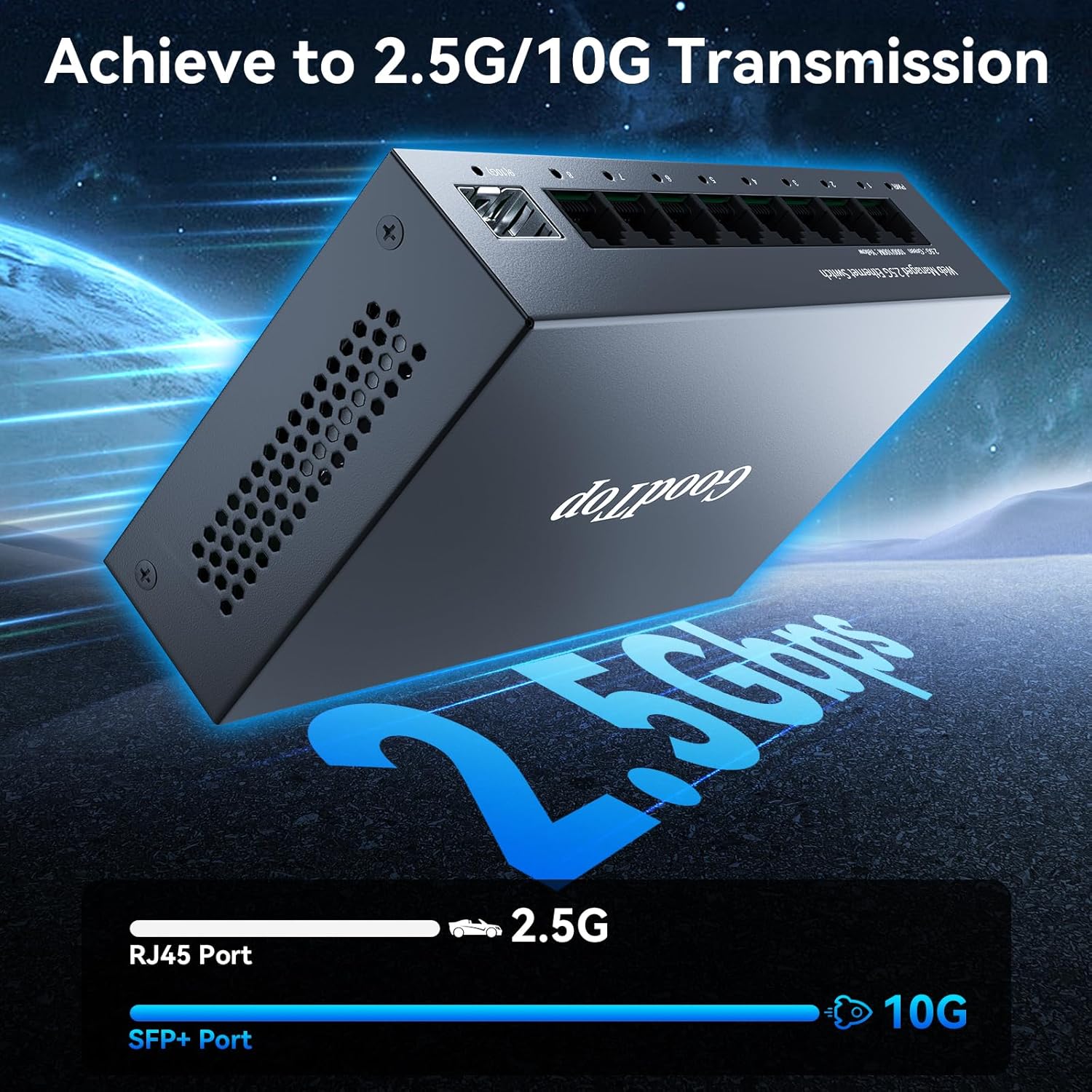

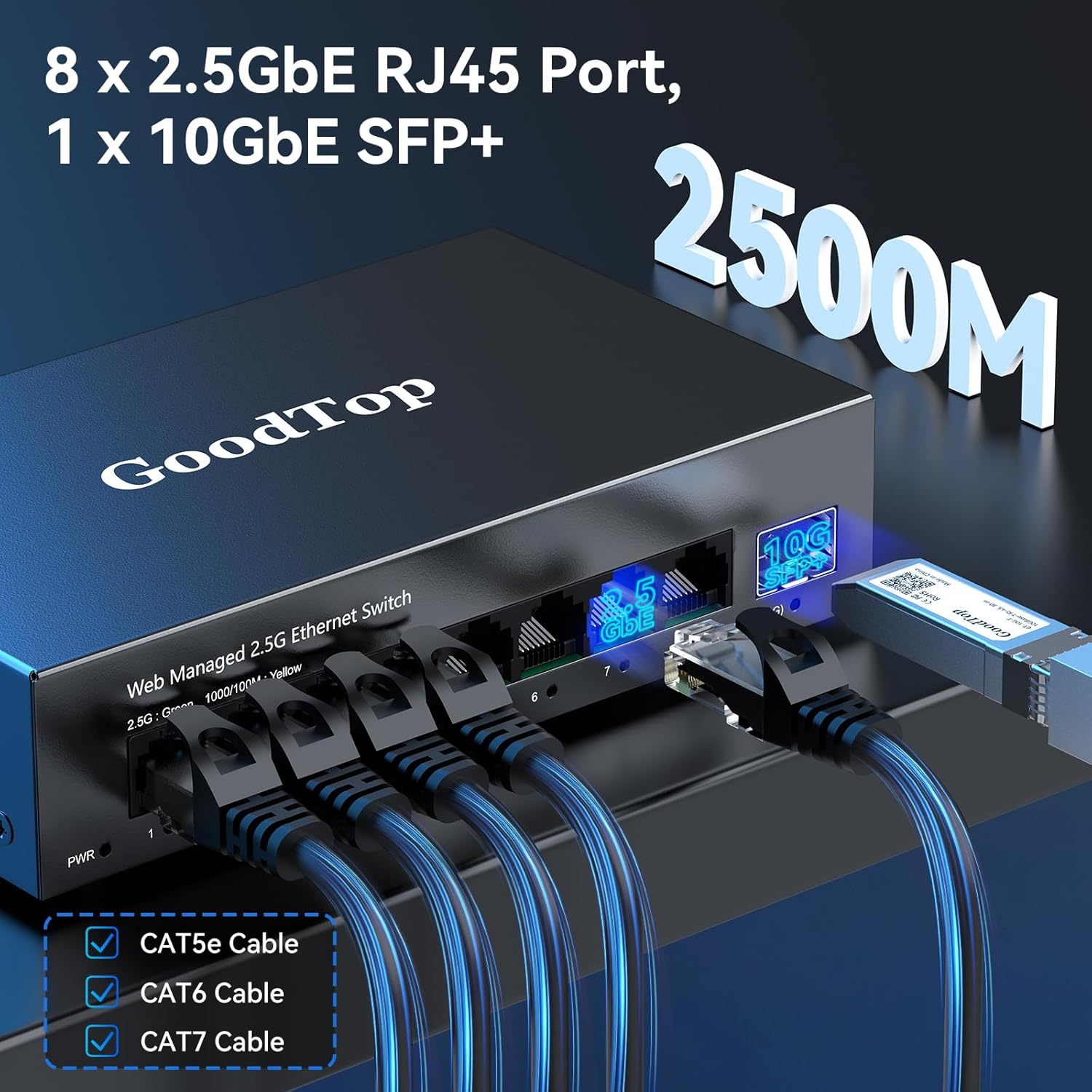

• 【2.5G &10G Switch】The switch is equipped with 8 x 2.5G Ethernet Ports and 1 x 10G SFP+ Slots. 2.5G ports supports 10/100/1000M/2.5G adaptive speed and Auto MDI/MDIX. 10G SFP+ Slots supports 10M/100M/1G/2.5G/10G speed,and compatible with RJ45 copper module,optical fiber module,DAC and AOC cable.(Note: It doesn’t support GPON/XGSPON modules).

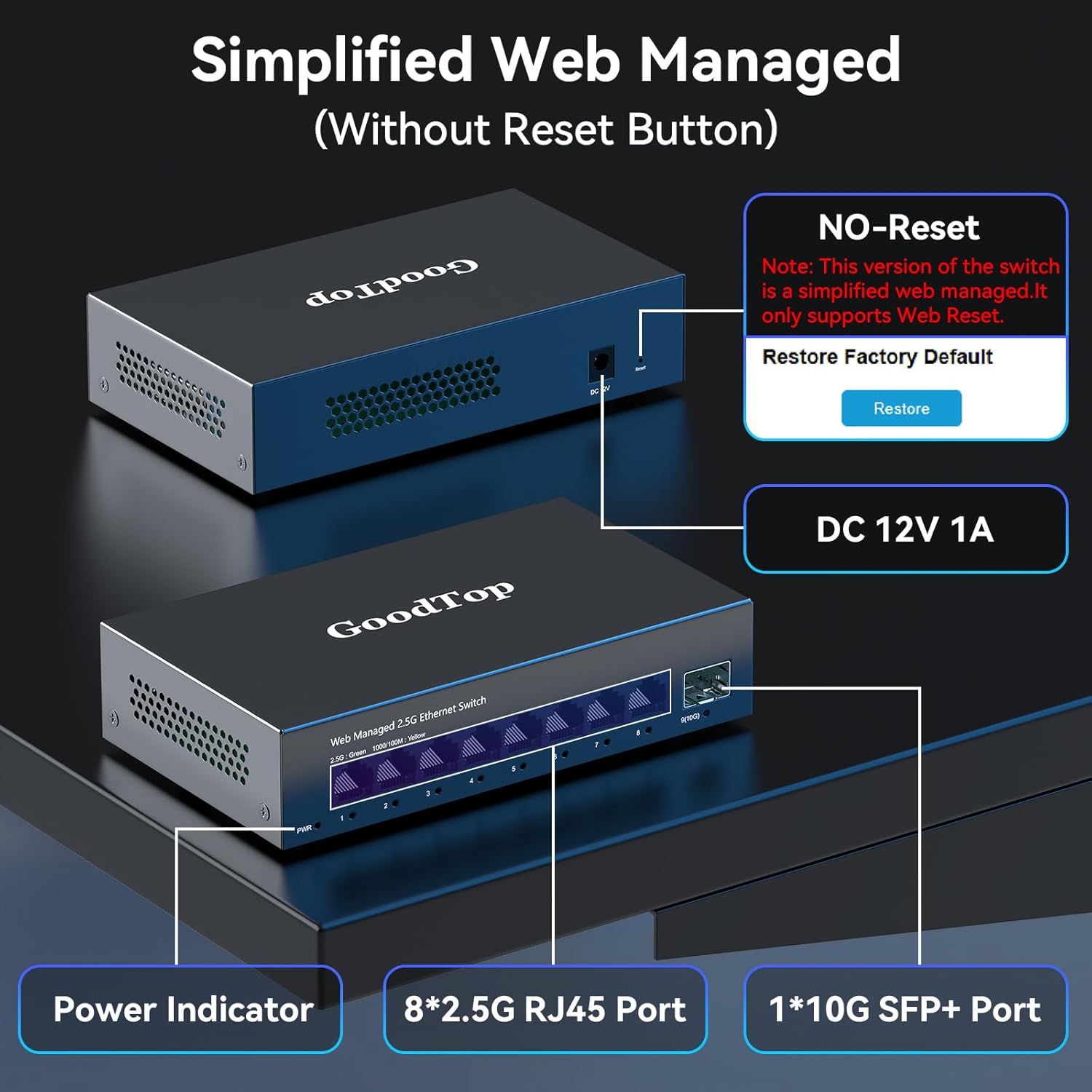

• 【Simplified Smart Web Managed】The switch supports log in via web interface and there are some basic features for managing the switch.Such as VLAN(802.1Q VLAN),QOS,IGMP Snooping,Loop Prevention,MAC address,DHCP Client,Trunk Group Setting,etc.(Note: Please set IP address via IPV4 first before log in this switch).Reset:This version of the switch is a simplified web managed.It only supports Web Reset.It doesn't have reset button.
• 【Link Aggregation】The switch supports Link Aggregation which it is also called Port Aggregate Setting on web interface.Supports at most two groups link aggregation and max 4 ports for each groups.
• 【Switch Performance】The Master chip of switch is equipped with RTL8373N,which is with lower power consumption and less heat generation.The power of the switch is around 12W.Power consumption at idle is about 2.2W.Working at the range of temperature 0~40°C.There might be a little hot when it is fully loaded.
• 【Metal Housing & Fanless Design】With fanless design,the switch can work silently and dissipate heat through vents and metal shell. On the bottom of switch, there are mounting holes so one can use two screws to mount the switch to a desk, wall, or elsewhere. This switch comes with four Non-slip mats which can be stuck at the bottom of switch. Make it stable on desk. Besides,this is a very small footprint switch that can be mounted just about anywhere.
• 【Versatile Applications】With 8 x 2.5G RJ45 ports,1 x 10G SFP+ port,this switch can be used in various scenarios,including 2.5G/5G/10G NAS (Network-Attached Storage) devices,PCIe adapters/NICs, servers, 8K video streaming, router and more. The wide range of compatible equipment makes it an excellent choice for multiple use of home network,businss office,server room,school,subway and so on.
