HDBaesT HDMI USB KVM Extender 4K60Hz 4:4:4 18Gbps 1080P HDR 330ft(100m) Over Cat5e/6/6a/7, HDMI2.0, Switchable 1 Host & 4 USB 2.0 on TX or RX, Two-Way IR/ 3.5mm Stereo/ RS232 (4KEX100-KVM-H2)

Overview

• Operation Mode : ON-OFF-ON
• Current Rating : 2 Amps
• Operating Voltage : 12 Volts
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : v AV Access
• Terminal : Through Hole
• Item dimensions L x W x H : 9.84 x 5.12 x 0.79 inches
• Circuit Type : 2-way
• Contact Material : Metal
• Switch Type DIP Switch : Material Metal
• : Switch Type DIP Switch
• : Material Metal
• Mounting Type Panel Mount : Specification Met CE
• : Mounting Type Panel Mount
• : Specification Met CE

About this item

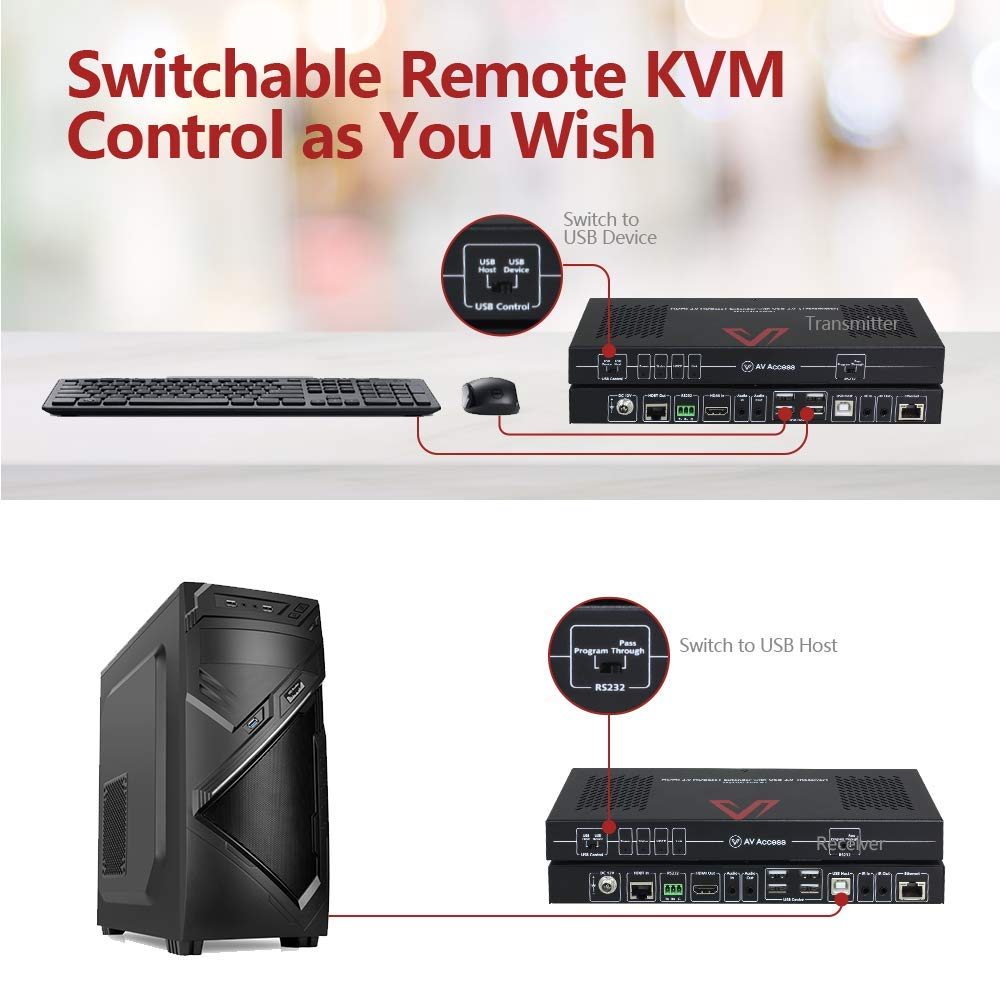

• 【Switchable Remote KVM Control either on Transmitter or Receiver】 1 x USB-Host and 4 x USB 2.0 ports simultaneously in TX and RX for KVM usage. There is USB Switch on TX and RX, let you choose which end is USB device and which end is USB host as you wish. High-speed USB2.0 up to 480Mbps with ZERO delay. It provides remote source PC control with keyboard and mouse, data transmission.
• 【HDMI 2.0 with HDCP 2.2 CEC】 Visual lossless DSC solution. 4K@60Hz (4:4:4) HDR10 18G and 1080P@60Hz up to 100m(330ft) via Cat6/6a/7 cables, 4K@60Hz 90m(295ft) and 1080P@60Hz up to 100m(330ft) via Cat5e. HDR Format supported: HDR10 and Dolby Vision (with resolutions under 4K@30Hz).Auto EDID management.

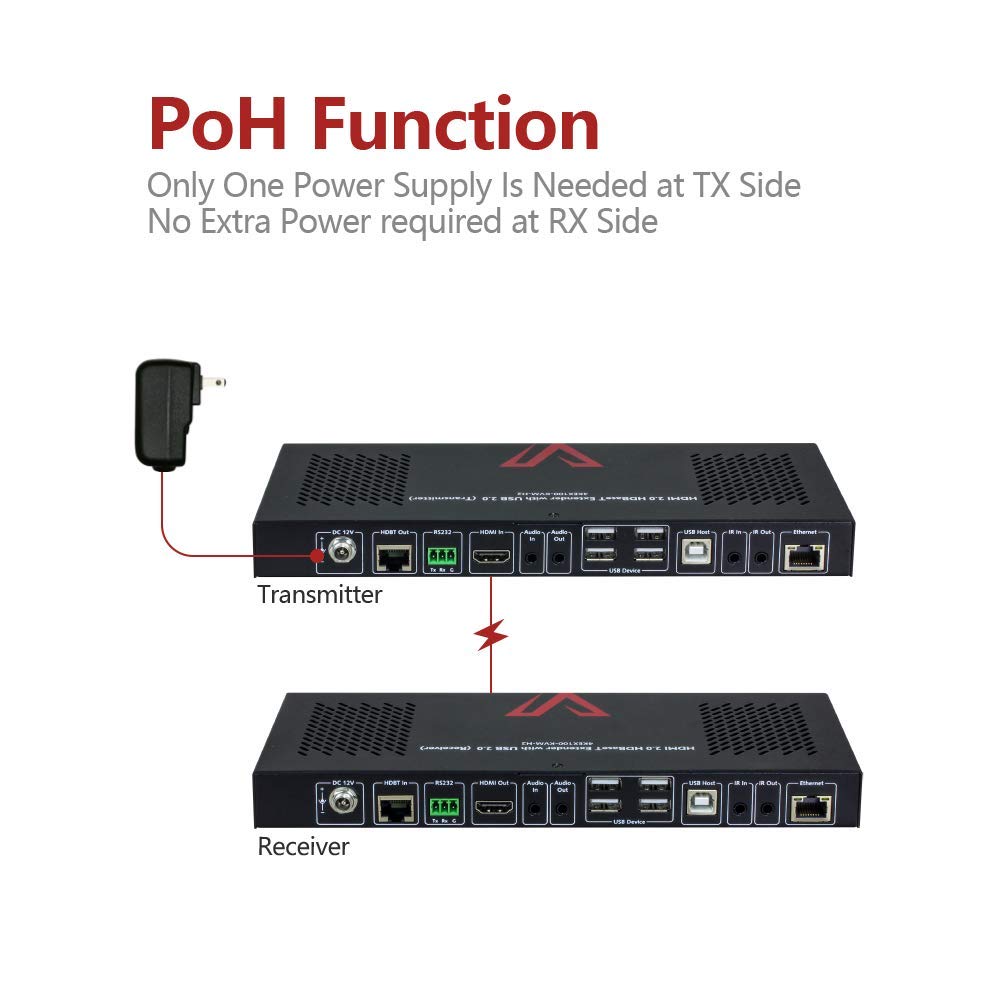

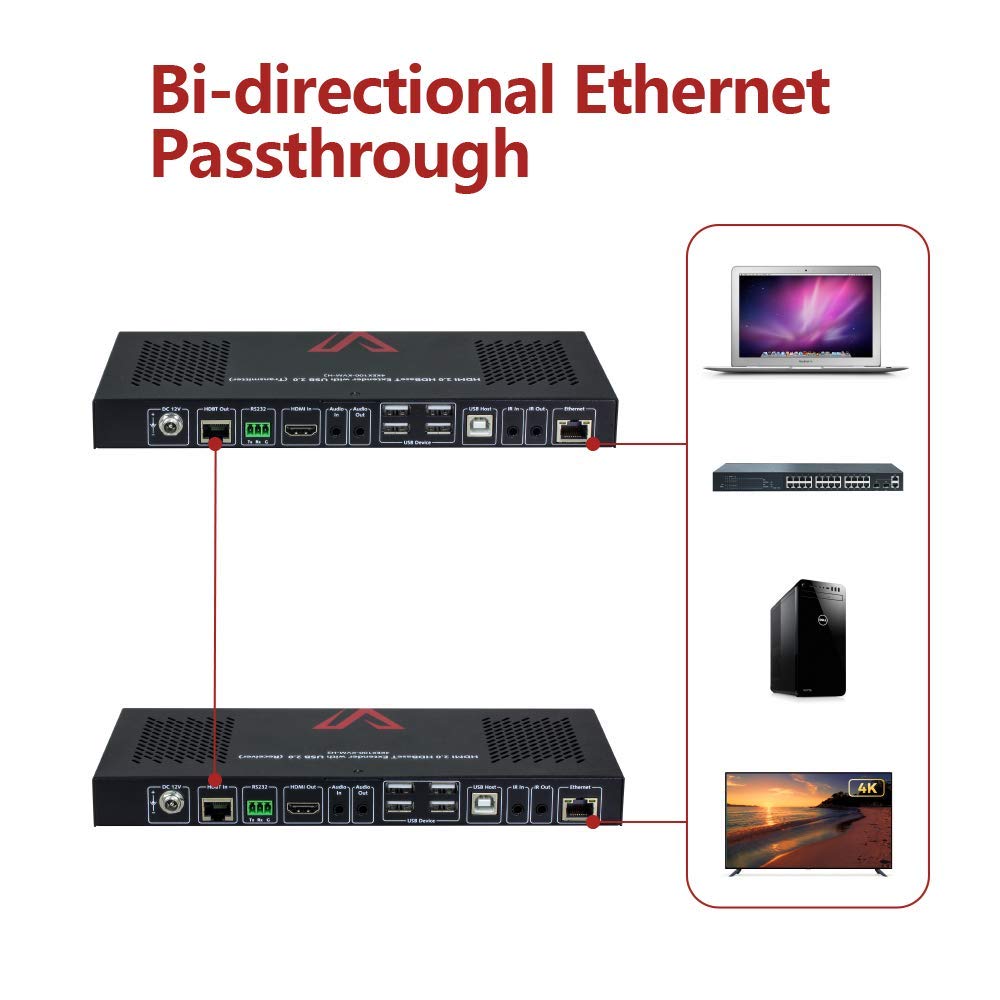

• 【Standard PoH and Two-way Ethernet Pass-through】 One power adapter on the transmitter can power both units, and by inserting the power supply into the back of the kits and turning the metal nut clockwise to avoid accidental disconnection. Ethernet port on TX and RX for Internet extension over HDBT.

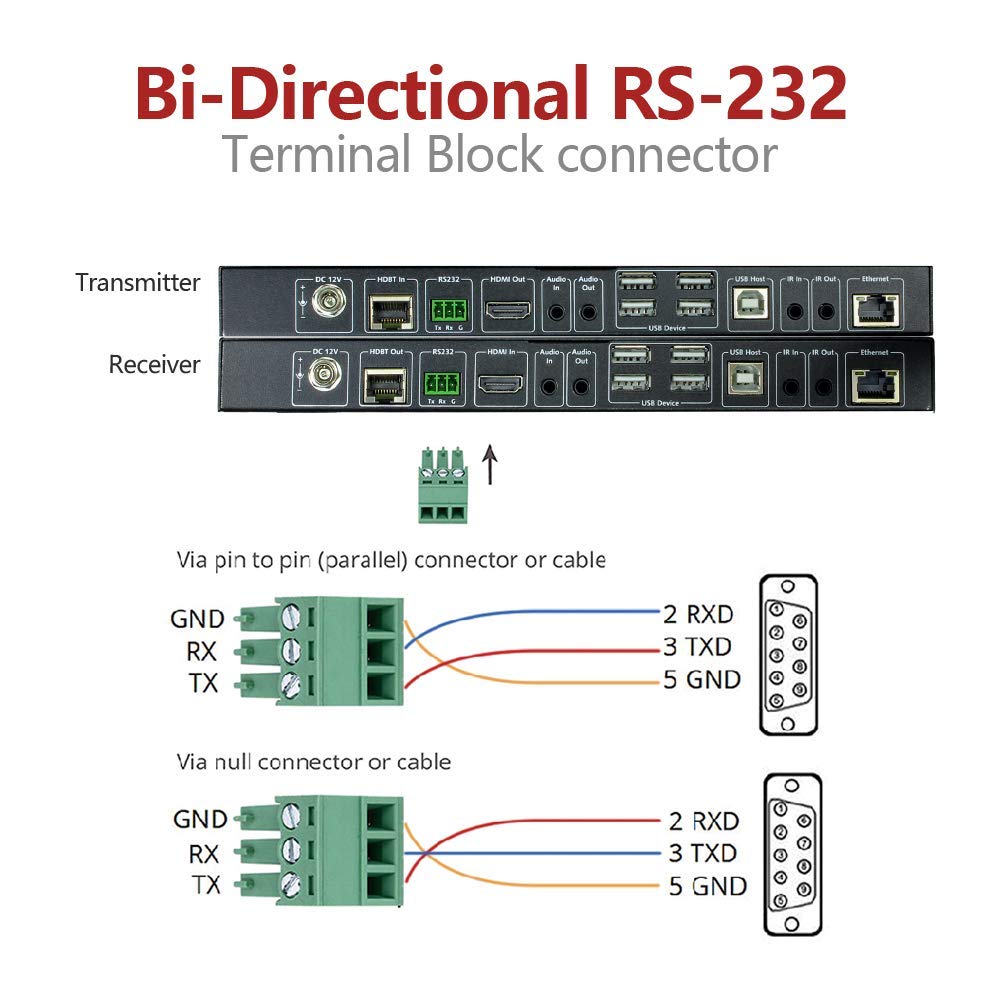

• 【Bi-Directional IR Control + 3.5mm Stereo audio + RS232】Allows user to bi-directional control of input and output devices from either location. RS232 provides a chance to pass through protocol commands to control third party devices.
• 【Durability】 Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge). 1-year warranty and lifetime technical support (AV Access).
