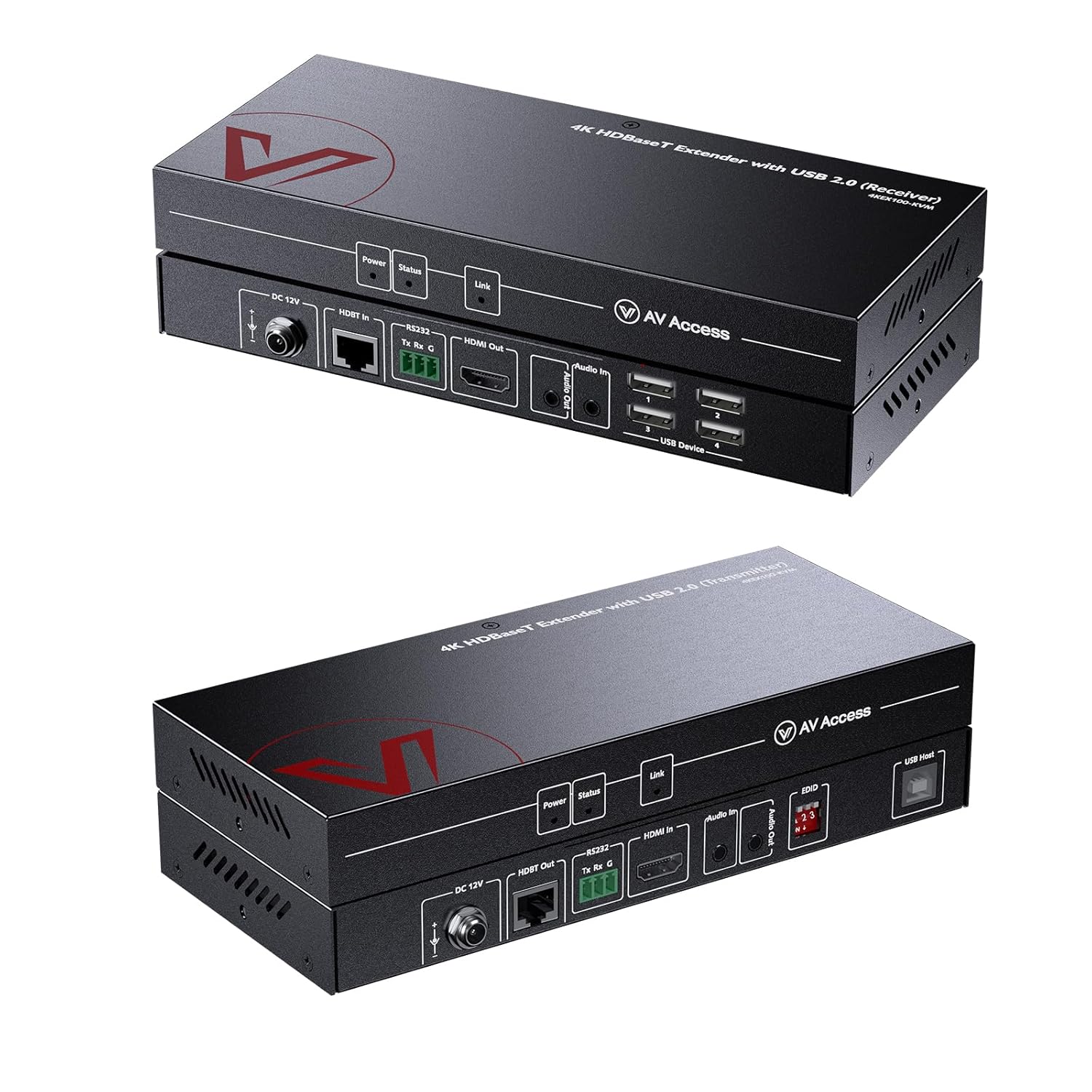

AV Access HDMI USB Extender(HDBaseT) KVM, 100m/330ft 4K 60Hz 1080p 120Hz Over Cat5e/6/6a/7, 4 Ports USB2.0, No Signal Loss and Latency, RS232, POE, Independent EDID Management (4KEX100-KVM)

Overview

• Operation Mode : manual
• Current Rating : 2 Amps
• Operating Voltage : 12 Volts
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : v AV Access
• Terminal : Through Hole
• Item dimensions L x W x H : 9.84 x 5.12 x 0.79 inches
• Circuit Type : 2-way
• Contact Material : Metal
• Switch Type Push Button : Material Metal
• : Switch Type Push Button
• : Material Metal
• Mounting Type Panel Mount : Specification Met CE
• : Mounting Type Panel Mount
• : Specification Met CE

About this item

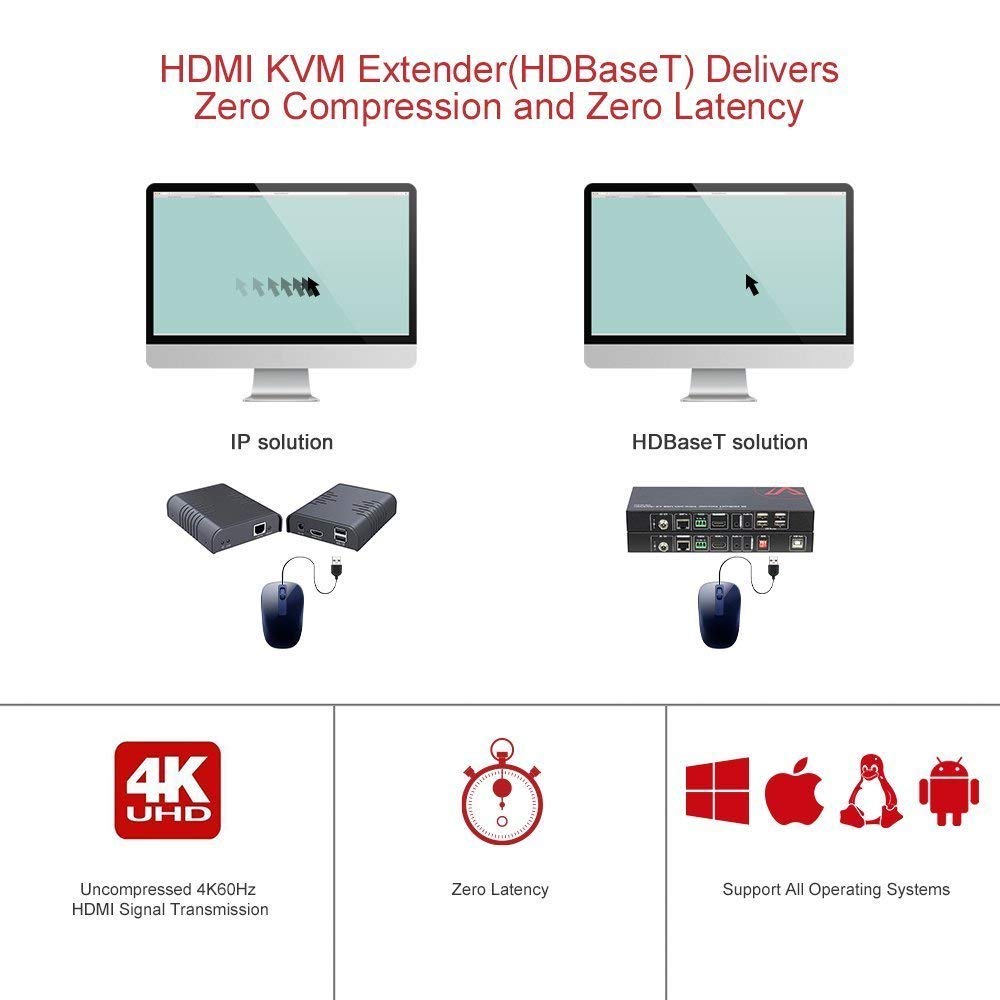

• 【4K@60Hz and 1080P@120Hz over 100m】With the HDBaseT 2.0 uncompressed technology, the device can extend 4K@60Hz ultra HD (YUV4:2:0 8bit) HDMI signal over single Cat 5e/6/6a/7 cable up to 330ft/100m. With audio input/output ports both on transmitter and receiver, it also supports bi-directional 3.5mm stereo pass through.
• 【High-speed USB 2.0 up to 480Mbps】It provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps pass through over HDBaseT with zero delay.

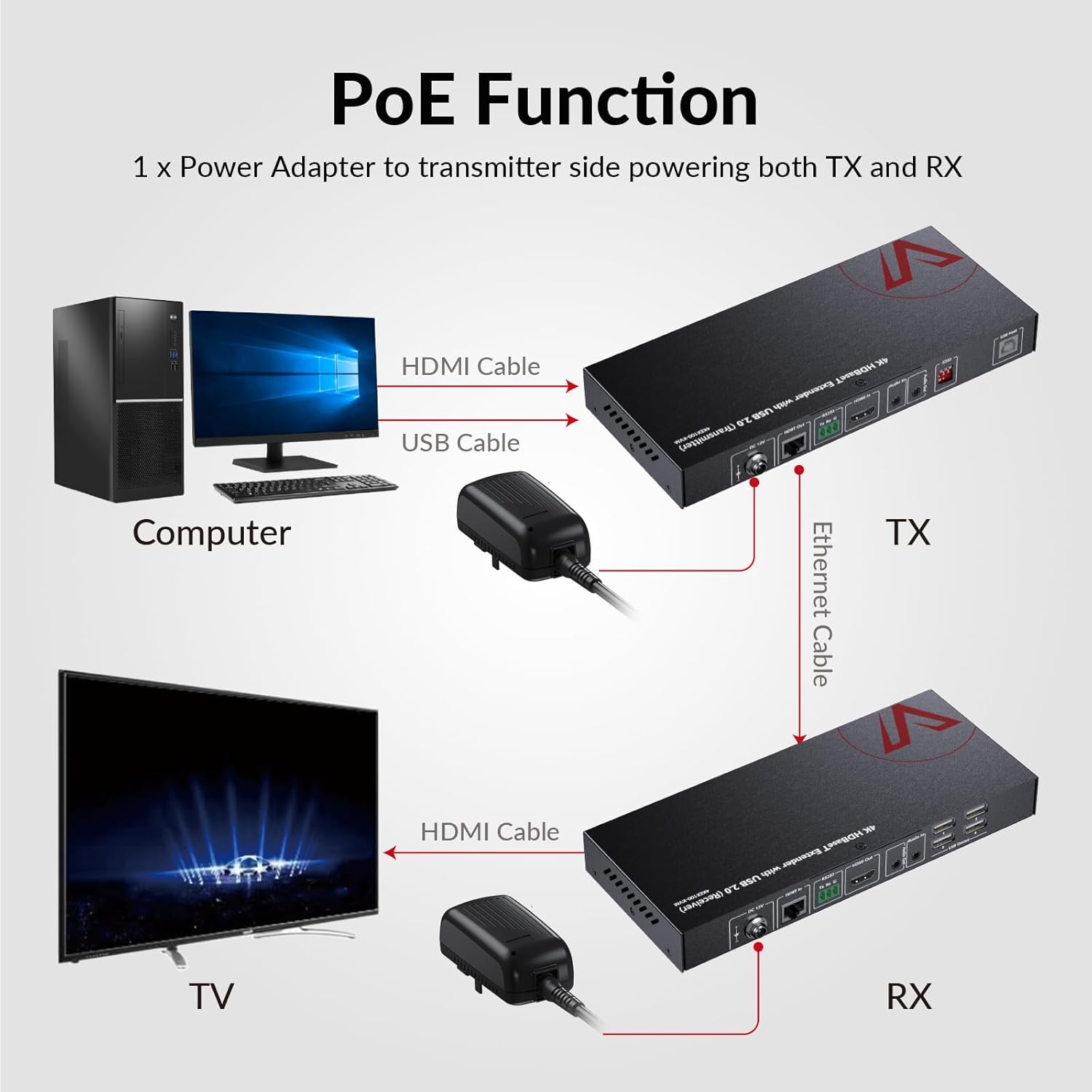

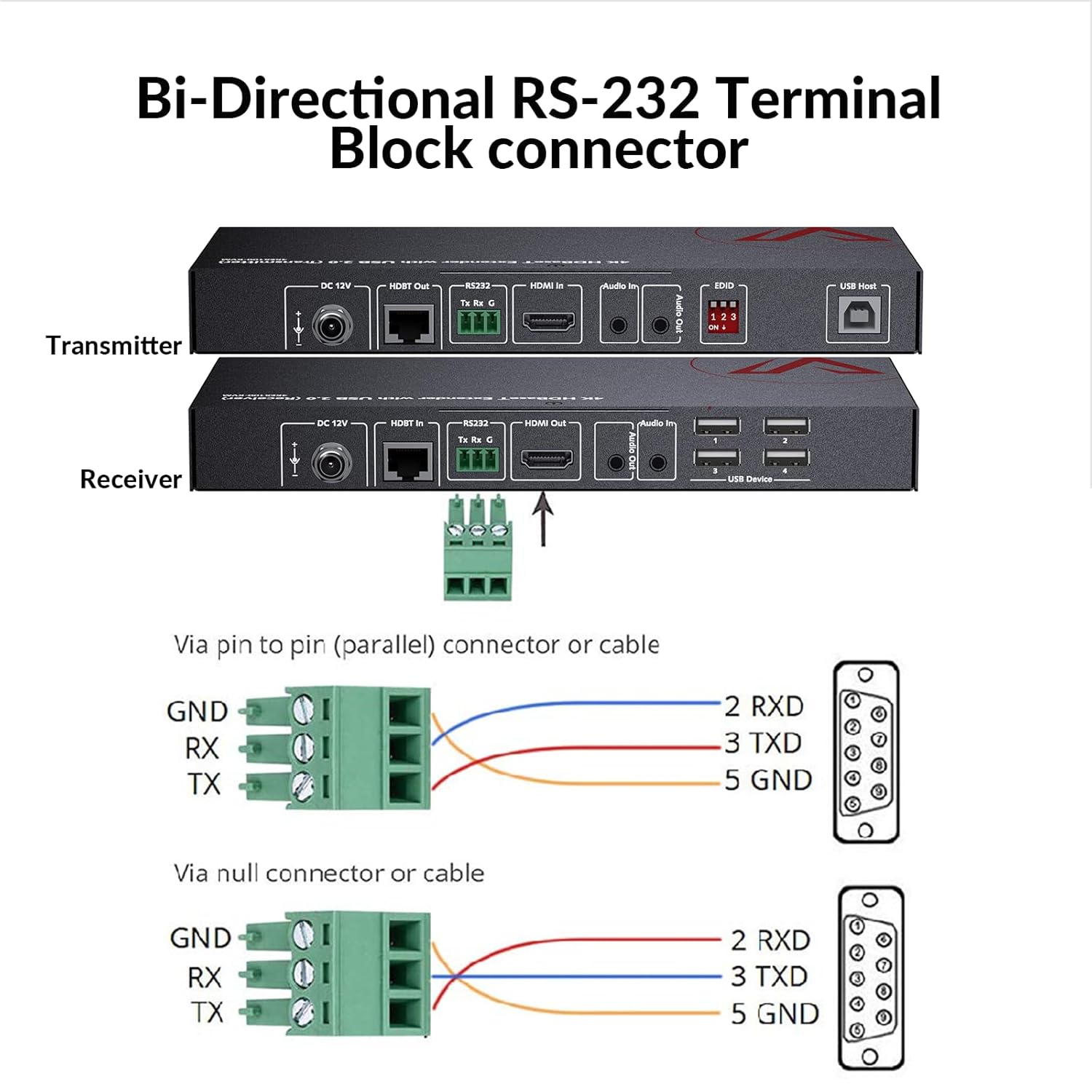

• 【Main Functions】No video loss, no time delay, with one way PoE(from transmitter to receiver), RS232 pass through over HDBaseT; DIP switch for EDID management; USB 2.0 pass through,1 x USB-Host connector built in transmitter and 4 x USB-Devices connector built in receiver;
• 【NOTE: It doesn't support HDCP】when connecting 2 or above USB devices to the receiver, please make sure that each ports power consumption is less than 5V 0.5A.
• 【Durability】Certificated by FCC, CE. Built-in surge/Lightning protection -Superior ESD protection: +/- 8KV (Air-gap discharge) +/- 4KV (contact discharge).
